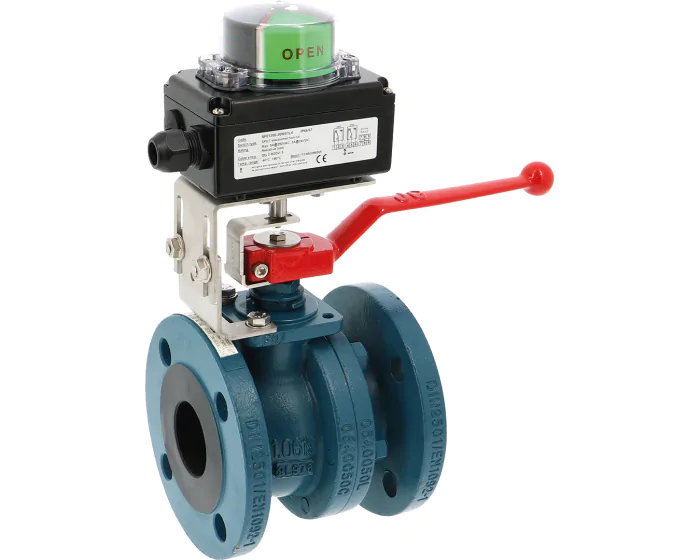

Full bore split-body valve. IP67 SF limit switch box. Carbon steel body, stainless steel ball, PTFE seats. Flanged attachments PN16/40 RF up to DN 50, PN16 beyond. PS: 40 bar up to DN 50, 16 bar above. Fire safe.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | PTFE |
| Switch type | dry SPDT |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 170.0 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | 2014/68/EU |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN65 - 2''1/2 Flanged PN16 | 516AIT0650462012 | S1008286 |
€711.96
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN80 - 3'' Flanged PN16 | 516AIT0800462012 | S1008287 |
€892.50
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN100 - 4'' Flanged PN16 | 516AIT1000462012 | S1008288 |
€1,152.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN125 - 5'' Flanged PN16 | 516AIT1250462012 | S1008289 |
€1,697.97
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN150 - 6'' Flanged PN16 | 516AIT1500462012 | S1008290 |
€2,468.40
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN15 - 1/2'' Flanged PN16/40 | 540AIT0150462012 | S1008291 |
€431.29
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN20 - 3/4'' Flanged PN16/40 | 540AIT0200462012 | S1008292 |
€464.10
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN25 - 1'' Flanged PN16/40 | 540AIT0250462012 | S1008293 |
€479.40
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN32 - 1''1/4 Flanged PN16/40 | 540AIT0320462012 | S1008294 |
€532.44
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN40 - 1''1/2 Flanged PN16/40 | 540AIT0400462012 | S1008295 |
€564.06
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) 2-piece body DN50 - 2'' Flanged PN16/40 | 540AIT0500462012 | S1008296 |
€623.21
(excl. btw)
|
add to cart |
